Standard Tube Conveyor
1500 Series Top Drive:
- 10” Tube
- 15” Wide 2 Ply Chevron Belt
- Available Lengths: 25’, 30’, 35’, 40’, 45’, and 50'
- Capacity: Up to 6,000 BPH*
- *Capacity depends on material, moisture, density and angle
- Drive Options:
- Electric Top Drive
- Hydraulic Top Drive
- Dual Top Drive
- Gas Direct Drive
- Available in Carbon or Stainless Steel Construction
- Standard Accessories:
- Weather Guards
- Optional Accessories:
- Manual Wheel Kit
- Bottom Guards
- Uni-Flex 1500 - 3 Bucket Spouting Assembly
- Uni-Flex 1500 - 5 Bucket Spouting Assembly
Download our 1500 Series Top Drive Literature Page Here!
Back To Top
 |

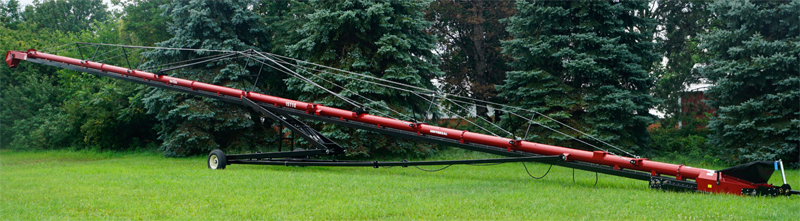

1500 Series S-Drive:
- 10” Tube
- 15” Wide 2 Ply Chevron Belt
- Available Lengths: 65’, 75’, 85’, 90’, 105' and 110'
- Capacity: Up to 6,000 BPH*
- *Capacity depends on material, moisture, density and angle
- S-Drive Options:
- PTO
- Electric
- Available in Carbon or Stainless Steel Construction
- Standard Accessories:
- Wind Guards
- Optional Accessories:
- Bottom Guards
Download our 1500 Series S-Drive Literature Page Here!
Back To Top

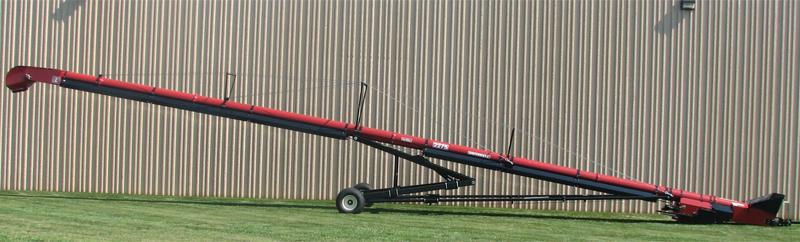

2200 Series S-Drive:
- 14” Tube
- 22” Wide 2 Ply Chevron Belt
- Available Lengths: 35’, 45’, 55’, 65’, 75’, 85’, 95’, & 120'
- Capacity: Up to 10,000 BPH*
- *Capacity depends on material, moisture, density and angle
- S-Drive Options:
- PTO
- Electric
- Available in Carbon or Stainless Steel Construction
- Standard Accessories:
- Wind Guards
- Optional Accessories:
- Bottom Guards
Download our 2200 Series S-Drive Literature Page Here!
Back To Top
For more
information on the new equipment or to find out what's on hand
please call
Marlowe Lamb at 1-888-LAMB-999
or 1-605-520-5336.
